MODEL TL-5315/F

For Utility Metering Applications


TECHNICAL DATA

(Typical Values @+25'C for batteries stored for one year or less)

Nominal capacity @ 2 mA TO 4V 2.1Ah
Rated voltage 7.2V
Maximum continuous current 100mA
Maximum pulse current capability 200mA
Rated 1 sec. pulse capability (to 3V) 40mA
Enclosure Noryl N-190
Operating temperature range -55'C to +85'C
U.L. Component recognition MH 12193

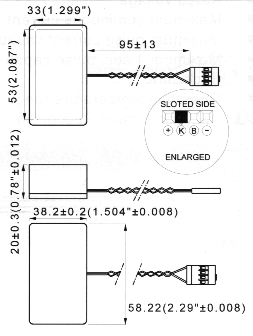

Connector Type
Housing MOLEX 22-01-3027
Contacts MOLEX 08-56-0110



Note: Any representations in this website concerning performance, are for informational purposes only and are not
construed as warranties either expressed or implied, of future performance.
