MODEL TL-5293/W

For Memory Back-up Applications


TECHNICAL DATA

(Typical Values @+25'C for batteries stored for one year or less)

Nominal capacity @ 200 uA, TO 3V 1.9Ah
Rated voltage 6V
Includes voltage dropping components
Wires AWG 24
Enclosure UL 94V2
Mounting Hook & Loop Fastner
Operating temperature range -55'C to +85'C
U.L. Component recognition MH 12193

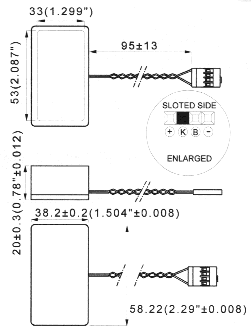

Connector Type
Housing BERG 71627-001
Contacts BERG 47565-002



Note: Any representations in this website concerning performance, are for informational purposes only
and are not construed as warranties either expressed or implied, of future performance.
