(Typical Values @+25'C for batteries
stored for one year or less)

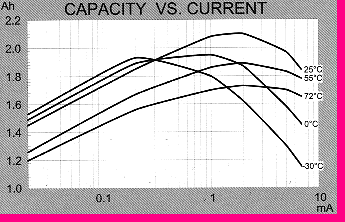

Nominal capacity @ 2 mA, TO 2V
2.1Ah
Rated voltage
3.6V
Wires
AWG 24
Enclosure
UL 94V2
Mounting
Hook & Loop Fastner
Operating temperature range
-55'C to +85'C
U.L. Component recognition MH
12193
Connector Type
Housing
BERG 71627-001
Contacts
BERG 47565-002
Note: Any
representations in this website concerning performance, are for informational
purposes only and are not construed as warranties either expressed or
implied, of future performance.
