MODEL TL-5101

International size reference :1/2AA ER14252


TECHNICAL DATA

(Typical Values @+25'C for batteries stored for one year or less)

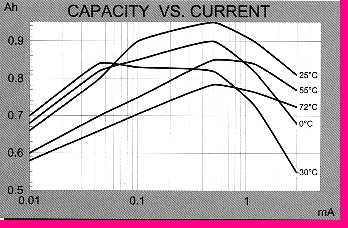

Nominal capacity @ 0.5mA TO 2V 0.95Ah
Rated voltage 3.6V
Weight 9g (0.32oz.)
Volume 4.3 cc
Operating temperature range -55'C to +85'C
U.L. Component recognition MH 12193


AVAILABLE TERMINATIONS
SUFFIX- /S STANDARD
SUFFIX- /P AXIAL PINS
SUFFIX- /T SOLDER TABS
SUFFIX- /PT2 RADIAL PINS
SUFFIX- /PT/TP POLARIZED TABS



Note: Any representations in this website concerning performance, are for informational purposes only and are not
construed as warranties either expressed or implied, of future performance.
