MODEL TL-2150

International size reference : 1/2AA, ER14252

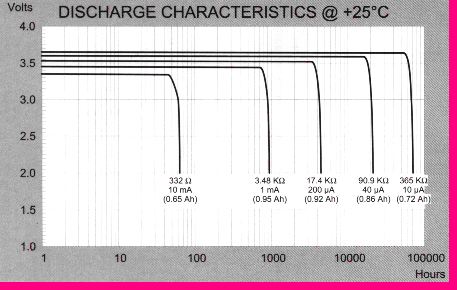

TECHNICAL DATA

(Typical Values @+25'C for batteries stored for one year or less)

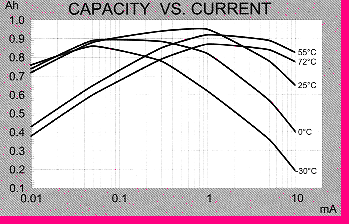

Nominal capacity @ 1mA TO 2V 0.95Ah
Rated voltage 3.6V
Maximum continuous current 50mA
Maximum pulse current capability 100mA
Rated 1 sec. pulse capability (to 3V) 20mA
Weight 9g (0.317oz.)
Operating temperature range -55'C to +85'C
U.L. Component recognition MH 12193


AVAILABLE TERMINATIONS
SUFFIX- /S STANDARD
SUFFIX- /P AXIAL PINS
SUFFIX- /T SOLDER TABS
SUFFIX- /PT2 RADIAL PINS
SUFFIX- /PT/TP POLARIZED TABS



Note: Any representations in this website concerning performance, are for informational purposes only and are not
construed as warranties either expressed or implied, of future performance.
